Solid Carbide Rods

High Abrasion Proof Solid Carbide Rods , Round Shape Cemented Carbide Bar

Place of Origin： Zhuzhou, Hunan
Brand Name： ZhuZhou Top
Certification： ISO9001:2015
Grade： ZF-R884
Minimum Order Quantity:10 pcs
Price:negotiable
Delivery Time:3-10days
Payment Terms:L/C, D/A, D/P, T/T, Western Union
Supply Ability:15tons/month

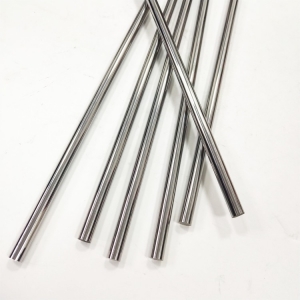

High Abrasion Proof Solid Carbide Rods , Round Shape Cemented Carbide Bar

Production Features

1. we are using 100% WC and the raw matearils of CO.

2. High hardness HRA89-93 ,good bending strength TRS 2800-4200.N/mm2

3. Long probation,stamping.

4. Has good wear resitance.

5. Professional manufacturer for more than 10years experience.

6. ISQ 9001-2015 Quality Control System.

7. With the HIP sintered technology,the structure of tungsten carbide is more uniform,more dense,the TRS can be raised more than 20%

We make tungsten carbide rods extruded or pressed.

Diameter from 0.35mm to 50mm,

length in 330mm or 340mm.

Grade in K10, K20 K30, K35 or etc.

Application of tungsten carbide rod

Used for making various kinds of carbide solid tools and cutting tools, such as drills, end mills, thread taps, rotating file,etc. A good material for general-purpose. Suitable for machining carbon steel, cast irons, stainless steel, heat-resistance steel, nickel based alloys and titanium alloys.

Specification

Material:	tungsten carbide
Dimension:	Dia12*75/100/150mm various size for choose
Ground Tolerance:	+-0.05mm based on requirement
Blank tolerancce:	+0.3~0.5mm
Grade:	K20 K30 K10, YL10.2, YG20 YG10X
Production Process:	Power mixing-Pressing-HIP sintering-Blank- Processing- Finished
Type:	round rod
Surface:	blank or grinding
Performance	High hardness, wear /corrosion resistancce, good toughness, good straightness
Application:	production various types electrical machine & electronic progressive dies and punches.And ceramics, printing machine, plastic, rubber, leather industry and cutting machines.
Non-standard or tolerance	can be customized

Our standard size models:

Size range(DiaXL mm)	Tolerance
Size range(DiaXL mm)	D(blank, mm)	D (ground, mm)	L(mm)
Dia(0.3-0.9)x330	+0/+0.3	h6/h7	0/+2
Dia(1-5)x330	+0.3/+0.4	h6/h7	0/+2
Dia(6-20)x330	+0.3/+0.6	h6/h7	0/+2
Dia(21-40)x330	+0.5/1.0	h6/h7	0/+3
For any other sizes, we are able to custom-made according to clients’ requirements or drawings.

Carbide Rods Grades for Cutting Tools

Grade

ISO

Grade

WC%

Co%

Grain Size

μm

Hardness

(HRA)

Density

g/cm3

T.R.S.

N/mm2

Application

YG6X

K10

0.6-0.8

14.9

2000

Suitable for processing Chilled cast iron, heat-resistant alloy steel, and fine process of common cast iron

YL10.2

K25-K35

0.6-0.8

14.5

92.5

3800

Wear resistance and strength comparatively higher,suitable for PCB micro drills,for making drills,end mill,reamer,taps,burrs etc.

Carbide Rods Grades for Moulds/Dies

Grade	ISO Grade	WC%	Co%	Grain Size μm	Hardness (HRA)	Density g/cm3	T.R.S. N/mm2	Application
YG8	K30	92	8	1.2	14.6	89	2320	Suitable for the roughening of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
YG6	K20	94	6	1.2	14.9	89.5	2150	Good Wear resistance, used for hard wood,processing original wood,aluminum section bar,brass rod and cast iron.
YG15		85	15	1.6	14.1	86.5	2400	Medium grain, for mining tools, cold heading and punching dies
YG20		80	20	1.6	13.7	85	2500	suitable for stamping dies such as screw, watch parts
YG20C		80	20	1.8-2	13.6	82	2200	suitable for colding heading dies, stamping dies such as shaft ,standard parts

Cutting steel class grade

Grade	ISO Grade	Density g/cm3	Hardness HRA	T.R.S N/mm2	Application
YT5	P30	11.50-13.20	90.0	1750	Suitable for heavy duty cutting of steel and cast steel and for a low-speed and medium-speed and a big feed-rate roughing operation under unfavorable machining conditions
YT14	P20	11.20-11.80	91.0	1550	Suitable for semi-finishing and finishing machining of steel and cast steel, using a medium feed-rate
YT15	P10	11.10-11.60	91.5	1500	Suitable for semi-finishing and finishing machining of steel and cast steel and a medium feed-rate and a rather high cutting speed is to be recommended
YC40	P40	13.00-13.40	89.5	1860	Suitable for heavy duty cutting of steel and cast steel with a possible big feed-rate and for face milling as well.
YW1	M10	12.85-13.40	92.0	1380	Suitable for semi-finishing and finishing of stainless and ordinary alloyed steel
YW2	M20	12.65-13.35	91.0	1680	Suitable for semi-finishing and finishing of stainless and low alloyed steel, mainly used for machining of trains' wheel hubs
YW3	M10	12.85-13.10	92.0	1420	It is suitable for semi-finishing and finishing of stainless and ordinary alloyed steel
